Saturday, March 15, 2008

Exploring LWR fuel rod degradation in pressurized water

During the 1979 meltdown at Three Mile Island the reactor fuel degraded while under pressure in a water-steam environment. Here are photographs of equipment that Leyse designed, built and operated during 1964 to explore degradation of an LWR fuel specimen while induction heated at 800 PSI in water-steam. Note the 8 inch BWR fuel specimen in the exploded and assembled views. Click for enlargements and use your back arrow to return here. Details will follow in future revisions.

Friday, March 14, 2008

MELTDOWN UNDER PRESSURE Uranium Dioxide - Zircaloy Reactions 1964

This report will be substantially revised with details and analyses.This work was not appreciated when the results surfaced during 1964. The meltdown in pressurized water at Three Mile Island (TMI) happened 15 years later. This work during 1964 was a probing exploration with the expectation that with feasibility established an extensive test program would be funded. Instead, burial of these results followed. Even after the accident at TMI, the so-called research groups preferred to stay away from this arena. Instead, far more costly, and far more remote from reality investigations have been allowed.

An 8 inch length of BWR fuel (depleted uranium dioxide in zircaloy cladding) was induction heated in pressurized water to the point of severe overtemperature. Three exploratory (probing) tests are reported here. The first test was at relatively modest conditions and the cladding remained intact. However,even in this case, there was an extensive reaction between the zircaloy and the uranium dioxide as the heated zircaloy was pressed against the uranium dioxide at the modestly high temperature.

The second test was at severe conditions and the heated section was essentially destroyed with the rapid oxidation of the zircaloy cladding and the extensive chemical reactions between the zircaloy and the uranium dioxide.

The third test was also at very severe conditions with the results of the second test and the production of molten alloy that froze to the specimen.

The following images and text is draft material from 1964. IT HAS ALWAYS BEEN SENSITIVE DOCUMENTATION, BUT IS NOW DISCLOSED. Remember, you may click on any image for enlargement.
Above is an exploded view of the test apparatus including the BWR fuel specimen.

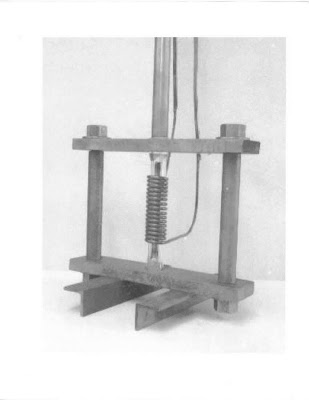

Above is the assembled test apparatus.

Above is a specimen of Zircaloy tubing under exposure to water-steam at atmospheric pressure. This is not the test apparatus of this presentation; it is presented here as an illustration of the technique and the general appearance of the heated zone.

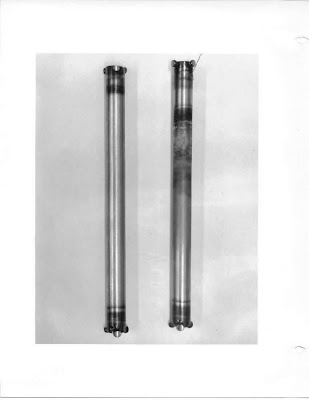

Above is the comparison of heated and unheated specimens. This clearly illustrates the zone of heating. This is an 8 inch length of BWR fuel with depleted uranium dioxide pellets. The metallography revealed chemical reactions between the Zircaloy-2 and the uranium dioxide although the cladding remained intact. The metallography is detailed in the following slides.

The above slide details the etch processes. Again, click for enlargement.

Above is the metallographer's (Rooney) drawing of the sections that are presented in the following slides.

Although the macro slide (way above) indicates a very robust fuel rod with only discoloration from the heating in pressurized water steam, this slide shows that degradation of the assembly is underway. Note the ...

Further details of degradation. Metallographer Rooney notes, "2. A layer which is rich in uranium."

And more details.....

Above is the next test, and here we are getting down to business. These photos show the element while still in the test apparatus. The extensive chemical reactions (Zircaloy and uranium dioxide) have severed the specimen. The lower section has dropped to the lower plate, while the top section remains suspended by the support wire.

Above shows the upper part of the fuel, and this serves as an opening guide to the slides of
metallographs. Again, click to enlarge.

A caption for the above will follow in forthcoming additions to this section.

This is fantastic today, and it should have been in 1964.

Above is another guide to the detailed metallographs.

Next we have another run with severe failure, September 10, 1964:

As I look back on this 1964 work today,October 1, 2008, it indeed was great exploratory research conducted in an atmosphere that was not conducive to this activity. In the second slide immediately above, a frozen melt is apparent. This frozen melt should have been sectioned for detailed study including chemical analysis; it was not.

Tuesday, March 11, 2008

Cost of Protecting Nuclear Power Plants (1987 attitude)

CLICK TO ENLARGE: The above is an old Leyse Memorandum from 1987. At the time, there was very little consideration of terrorism as threat to nuclear power plants.

Here is the text of the handwritten reply ( a bit more easily read).


Thanks for your note. Protecting power plants and other facilities against terrorism is a much larger topic than I could hope to address in the Journal article. Although nuclear plants are the largest risk in terms of damage potential I would not think that a well designed security system (like at North Dakota missile sites) would be prohibitively expensive. However, I have not really looked at it in detail.
